The problem
A LiftMaster swing operator on a suburban driveway gate had become unreliable and then stopped altogether. The gate ran on a battery kept topped up by a post-mounted solar panel, and the battery kept going flat — it had already been replaced once, and the new one went the same way.
That is the detail worth paying attention to. A battery that fails once is a battery. A replacement battery that fails the same way is telling you something upstream is wrong.
How we diagnosed it
- We load-tested the battery first, because on any solar or battery-backed gate the power system is where the diagnosis starts. It held up — the battery in the gate was serviceable and not the fault.
- We then checked what was going into it. The solar panel was producing correctly and the wiring between panel and enclosure was sound, so the energy was arriving at the operator.

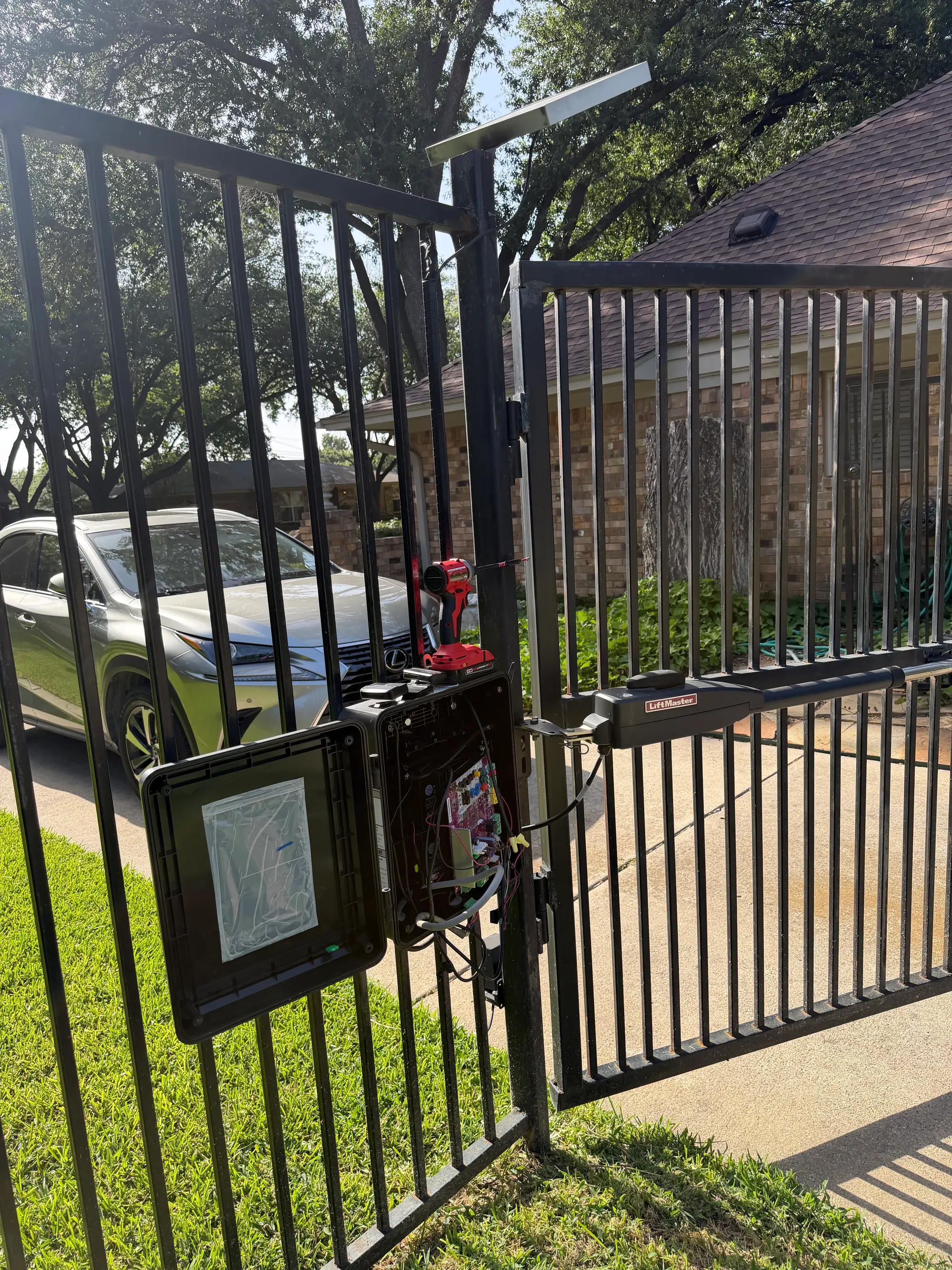

- The failure was on the control board itself. LiftMaster boards on these units carry the charging circuit, and on this one that circuit had stopped working. The board would still run the gate off whatever charge remained, but it was no longer putting anything back — so every cycle drew the battery down with nothing replenishing it, and each battery fitted to it was flattened in turn.
What we did
- We replaced the control board with the correct unit for the operator, reprogrammed the limits and re-paired the remotes and keypad.
- Before closing up we confirmed charge current was actually reaching the battery with the panel in sun, rather than assuming a new board had fixed it. That check is the difference between a repair and a return visit.

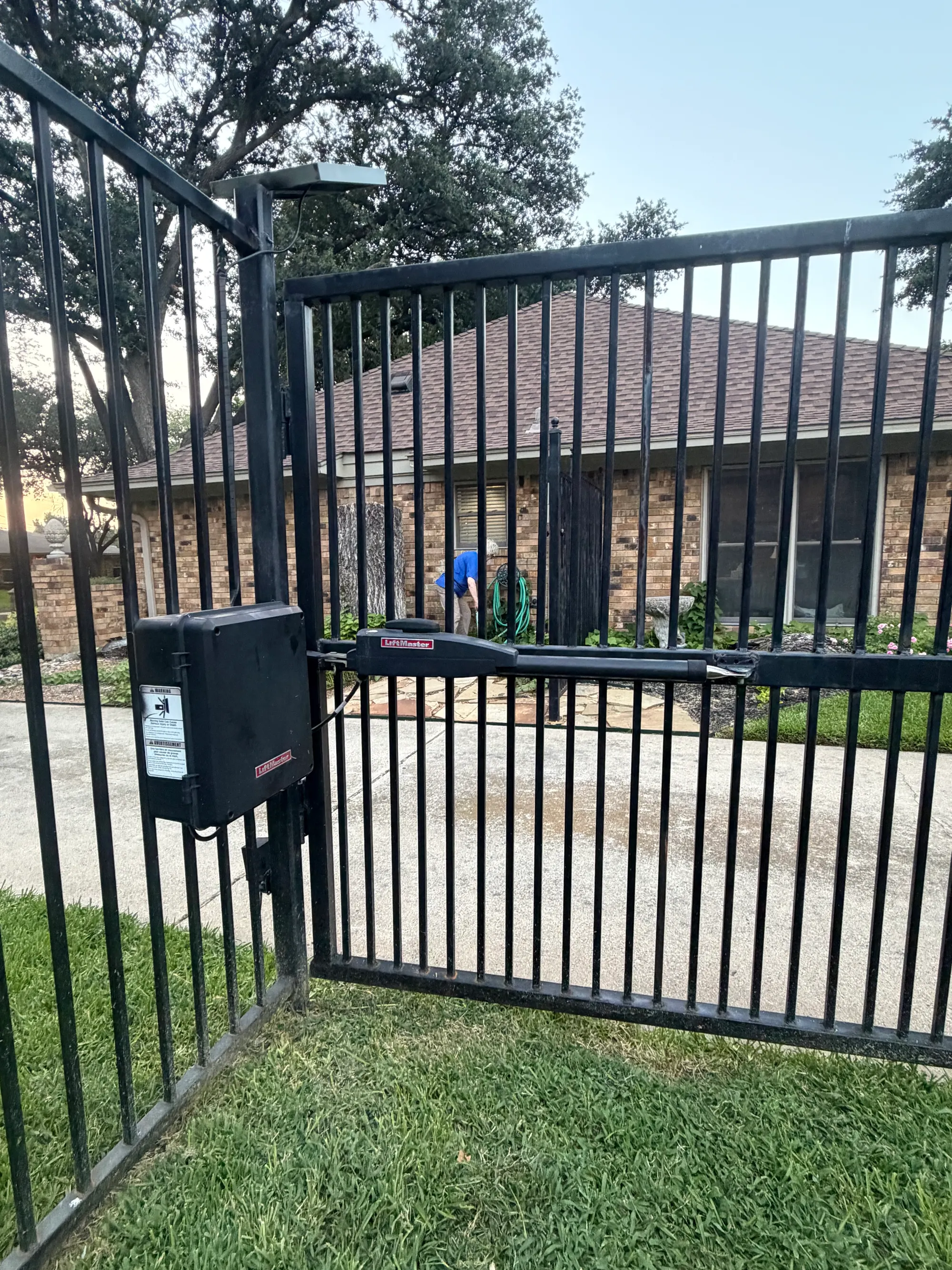

- The enclosure was resealed on reassembly so the replacement board is not exposed to the conditions outdoor electronics fail in.
Watch this repair
No other gate repair company in Dallas–Fort Worth publishes video of their work.
The outcome

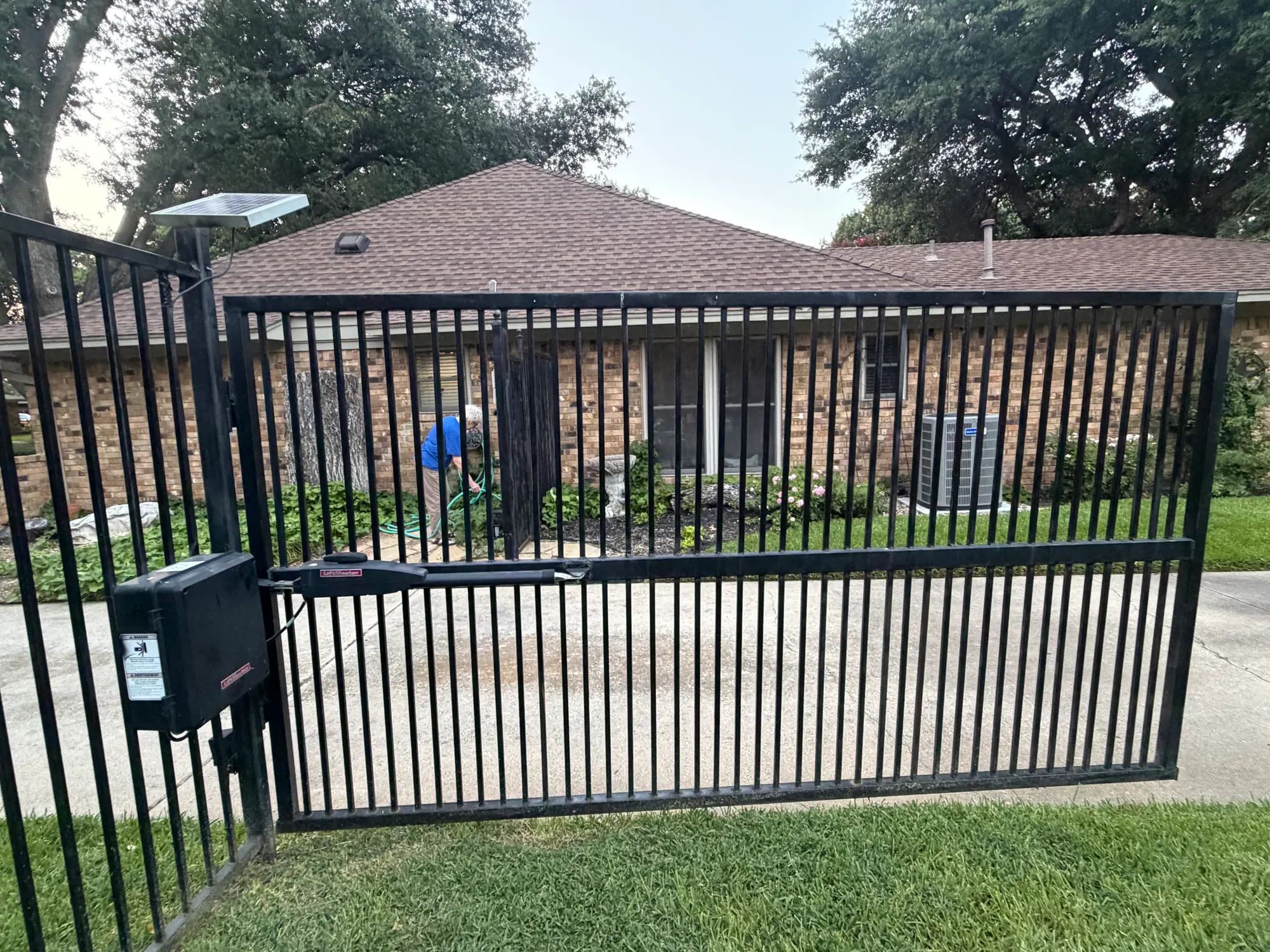

The gate is back in normal service on its original battery, which is charging properly for the first time in months. The repair is backed by a 3-year warranty on parts and workmanship.
What you should take from this
If you have replaced a gate battery and the replacement also went flat, stop buying batteries. On a solar or battery-backed operator the charging circuit usually lives on the control board, and when it fails the battery is simply the component that shows the symptom. It is an easy fault to keep paying for repeatedly — a battery is cheap enough that replacing it again always seems like the reasonable next step, which is exactly why the underlying board fault can go unfound for a long time.
