Is this a US Automatic Ranger?

The Ranger name has covered several generations of one idea: a 12-volt battery-powered linear actuator on each leaf, run by a control board that holds the stop positions itself. USAutomatic currently sells two: the Ranger 500, with a 16-inch stroke actuator, and the Ranger HD, with a 24-inch stroke. Each comes as a “1” for a single leaf or a “2” for a pair. Earlier versions were sold as the Ranger 500 S and 500 D, then as the Ranger I and Ranger II, and USAutomatic’s manuals for those rate them for 400 pounds and 13 feet of gate.

The control board tells you which one you have. Open the box and read the serial printed on the board: HD plus four digits is a current Ranger HD board (500027); BR plus four digits is a current Ranger 500 board (500028); R6 through R11 is the earlier 500021 board fitted to both; 3 or 4 plus four digits is 500500; 5 plus five digits is 500510.

If the board has been swapped and the serial no longer tells the story, the actuator does. Measure how far the stainless extension tube travels from fully retracted to fully extended: about 16 inches is a Ranger 500, about 24 inches a Ranger HD.

  • No limit adjusters on the actuator itself — every Ranger stop position is set on the control board
  • Four limit adjustment dials on the board, grouped for Gate 1 and Gate 2, with two sensitivity dials on the board’s left side
  • Dip switch banks marked SW1 and SW2 and a Type D constant-pressure push button
  • A serial on the control board beginning HD, BR, or R6 to R11 — or a bare 3, 4 or 5 on older boards
  • On some Ranger HD installs, a metal cabinet with an external radio antenna in place of the plastic control box
  • On older Rangers, a separate charge controller with a row of LEDs for external power, solar panel, charging and charged

Also labelled: Ranger 500, Ranger HD, Ranger HD 1, Ranger HD 2, Ranger 500 1, Ranger 500 2, Ranger I, Ranger II, Ranger 500 S, Ranger 500 D, 020511 (Ranger 500 2 AC-charged kit), 020512 (Ranger 500 1 solar kit), 020513 (Ranger 500 2 solar kit), 020518 (Ranger HD 1 solar kit), 020519 (Ranger HD 2 solar kit), 020522 / 020523 (Ranger HD solar kits with metal cabinet)

Ranger at a glance

Current versions
Ranger 500 1 / 2 and Ranger HD 1 / 2 (single / dual leaf), AC-charged or solar-charged
Actuator stroke
Ranger 500: 16 in. Ranger HD: 24 in (USAutomatic manual 500021 cover)
Ranger 500 maximum gate
Ornamental iron 13 ft / 400 lb; ranch 16 ft / 300 lb; chain link 14 ft / 350 lb; farm 20 ft / 250 lb
Ranger HD maximum gate
Ornamental iron, ranch or chain link 16 ft / 800 lb; farm 20 ft / 250 lb
Older Ranger, Ranger I / II rating
13 ft, 400 lb
Operating power
12 V DC battery; charged by DC adapter (PN 520009) or 10 W solar kit (PN 520026)
Battery
12 V Group U-1 sealed, 30 Ah minimum (older 2008 manual: 33 Ah minimum)
Solar cycles per day, 10 W kit (manual zones 1 / 2 / 3)
Single: 22 / 36 / 65. Dual: 11 / 18 / 32 — same for Ranger 500 and Ranger HD
AC-charged capacity
Up to 575 cycles per day
Charge cable extension (Ranger HD manual)
DC adapter lead up to 1,000 ft on 10 AWG; solar lead up to 500 ft on 14 AWG
Current control boards
500028 (Ranger 500), 500027 (Ranger HD)
Ranger 500 dynamic thrust
400 lb (distributor listing)
UL 325
Manuals cover Class I–IV installation; monitored entrapment device required

From US Automatic’s published documentation. Your unit’s label and manual take precedence.

What your Ranger is doing, and what usually causes it

  • My Ranger stops a foot short of fully open or fully closed

    Usually: On a Ranger the stop position is a board setting. Dials knocked during other work, a replacement board never set up, or limits adjusted without the required power cycle all do it. A weak battery can also stop the arm early when current sense trips over the last stretch.

    What we do: Rule out the battery, then set limits on the board, nudge the extend position, power-cycle at the harness quick-connect and run three full cycles as USAutomatic directs.

  • It worked for years on this gate and now reverses halfway every time

    Usually: Current sense is tripping. On a Ranger 500 the likely root is a gate near or over its rating — 400 lb ornamental, 300 lb ranch — made worse by worn hinges or a sagging leaf. On either model, a dragging gate or a low battery pushes current draw up.

    What we do: Check the gate against the model’s rating, free the leaf by hand, then set sensitivity and test reversal before recommending anything bigger.

  • We added a keypad and photo eyes and now the battery keeps going flat

    Usually: Every accessory that stays powered draws from the battery around the clock, and the Ranger board’s accessory output is limited to 750 mA. Accessories that are not solar friendly are a known cause of early battery failure; on a 10-watt panel the charge cannot keep up.

    What we do: Measure standby draw, turn on photo eye power management (SW1 switch 10) so the eyes are powered only while the gate moves, replace power-hungry accessories and size up the panel where needed.

  • The old charger in my Ranger box is flashing a light and the gate is dead

    Usually: An early-style LED charge controller in failure mode. The LED pattern separates a reversed or wrong-voltage battery, thermal runaway, excessive drain and a battery that failed pre-qualification.

    What we do: Decode the pattern, load test the battery, check the transformer or panel, and replace the controller only if it is the fault.

  • Only the second gate on my dual Ranger misbehaves

    Usually: Each gate has its own plug, limit dials and sensitivity dial, and SW1 switch 4 enables Gate 2. The far leaf also depends on the dual-gate cable and its splices.

    What we do: Swap the actuators between ports to see whether the fault follows the arm or the board, open the splice box, and set Gate 2 limits with only that actuator connected.

  • The leaves hit each other when closing

    Usually: Overlapping leaves need the Ranger’s 1.5-second Gate 2 delay, which only runs with a lock switch turned on — or the overlapping leaf is plugged into Gate 1.

    What we do: Put the leaf that must close first on Gate 2, turn on the lock switch for the delay, and cycle both leaves to confirm the order.

  • The solar panel is clean but the battery never seems to charge

    Usually: USAutomatic says even a small amount of shade stops a panel charging, and the panel must face south to southwest at its bracket angle. A panel moved to find sun on an undersized or spliced cable loses charge in the wire.

    What we do: Relocate the panel into full sun — the manual allows up to 200 feet — on the right gauge: 18 AWG to 100 feet, 16 AWG to 250, 14 AWG to 500, direct-burial rated or in conduit.

Ranger down? Tell us what it is doing — we will tell you what it needs.

(214) 735-4314

How the Ranger works — and what that means for repair

Ranger 500 or Ranger HD: the gate rating is the difference

The two current Rangers share a control board design, a battery controller and identical solar cycle ratings — but not the gate they can move. USAutomatic’s Ranger 500 manual allows ornamental iron up to 13 feet and 400 pounds, ranch gates to 16 feet and 300 pounds, chain link to 14 feet and 350 pounds, and farm gates to 20 feet and 250 pounds. The Ranger HD manual allows ornamental iron, ranch and chain link gates all the way to 16 feet and 800 pounds, with the same 20-foot, 250-pound farm gate limit.

A Ranger 500 on a gate beyond those figures is a mismatch worth ruling out early. It may run acceptably when new, then trip its current sense more and more often as hinges wear and the leaf sags — and no replacement part fixes that.

USAutomatic positions the Ranger HD as its heavier-duty, more corrosion-resistant Ranger; on paper its gate rating matches the Patriot’s. What separates an HD from a Patriot is the board, the limits and the warranty, not the gate it can carry.

Stop positions set on the board, not in the arm

Rangers have no limit switches to adjust inside the actuator. Current boards carry four limit dials — extend and retract for each gate — and USAutomatic describes a “nudge” method for the extend position: with the actuator fully extended, turn that gate’s extend dial slowly clockwise and the arm creeps outward until the leaf sits where it should. Overshoot, and the dial has to be backed off so the gate stops short, then nudged again.

Two details catch people out. The nudge adjusts the extend limit only. And after adjusting, the board needs a power cycle — the manual has you unplug and reconnect the actuator harness quick-connect — then three full cycles to confirm. A Ranger that seems to forget its limits after someone adjusted it has often simply never been power-cycled.

On a dual Ranger, USAutomatic sets Gate 1 with only that actuator connected, then Gate 2 with only its actuator connected, before plugging both back in.

What the Ranger control board does differently

Current Ranger boards run one or two gates, set soft start and stop on SW2 switches 1–3 (0 fastest, 7 slowest, factory 4; switch 4 is not a speed switch), and use two sensitivity dials, numbered 0 to 10, that cap how much current each motor may draw after the first second of travel.

Two differences from the Patriot board matter in the field. The Ranger’s J2 accessory output is rated at 750 milliamps against the Patriot’s 1.5 amps, so an accessory package that is comfortable on a Patriot can overload a Ranger. And the Ranger board monitors one contact edge directly; a second edge, or more than one photo eye per direction, needs USAutomatic’s 500015 expansion module.

When the electric lock or magnetic lock switch (SW1 switch 5 or 6) is on, the Ranger opens Gate 2 last and closes it first with a 1.5-second delay. For overlapping leaves without a lock, the manual suggests turning on the electric lock switch simply to get that delay.

Older Rangers and their LED charge controller

The 2008 Ranger manual describes a charge controller with a row of LEDs — external power, solar panel, detection, charging, charged and system error — rather than the LCD battery controller on current units. A flashing system error light means the charger has entered failure mode, and the pattern of the first four LEDs identifies why: wrong battery voltage or reversed connection, thermal runaway, a charge-time monitor or excessive drain, or a failed battery pre-qualification test. A pre-qualification failure is the charger saying the battery itself is suspect.

Those early units also called for a bigger minimum battery — 33 amp hours, against 30 in current manuals — and the Ranger I and II shipped with a 6-watt panel rather than today’s 10-watt kit. An old Ranger that still has its original panel is working with less charge than a new one.

Ranger parts we repair, adjust or replace

A failed part is not a failed operator. These are the components that actually wear or fail on the Ranger, and what we do about each.

  • Ranger 500 or Ranger HD actuator (Ranger HD PN 510006)

    Part replaced

    Drives the leaf through a 16 in (500) or 24 in (HD) stroke; contains the motor and gear train but no limit adjusters.

    Signs it has failed: Motor hums without tube movement, grinding or clicking, water inside the housing, or a bent extension tube.

  • Ranger control board (500027 HD, 500028 Ranger 500, or earlier)

    Part replaced

    Holds the stop positions, sensitivity, soft start and stop, timer to close, safety inputs and lock outputs.

    Signs it has failed: A dead gate port, limits that will not hold after a proper power cycle, or burn marks after a storm.

  • Board limit adjustment dials

    Adjusted

    Set extend and retract positions for Gate 1 and Gate 2.

    Signs it has failed: Gate stops short or overruns after someone has worked in the box, or after a board swap.

  • 12 V Group U-1 battery

    Part replaced

    Powers every cycle; the charge source only replenishes it.

    Signs it has failed: Slowing travel, low-battery alarm from the entrapment siren, a controller E11 code, or a charger failing pre-qualification.

  • Battery controller (current PN 520001) or older LED charge controller

    Part replaced

    Charges the battery from the DC adapter or panel and protects against reverse connection.

    Signs it has failed: Blank LCD, E11 on screen, no charging symbol in full sun, or a flashing system-error LED on older units.

  • Charge cable and extension pigtails (PN 630038)

    Repaired

    Carry low-voltage charge from a distant outlet or a relocated panel to the controller.

    Signs it has failed: Corroded splices, wire too thin for the run, or a cut transformer or panel cable — modifying those voids the product warranty.

  • Metal cabinet and external antenna kit (Ranger HD option, PN 030230)

    Repaired

    Houses the board, controller, receiver and siren in steel, with the radio antenna mounted outside.

    Signs it has failed: Remote range drops off because the coax or antenna bracket is damaged, or the cabinet was welded with components installed.

  • Actuator brackets and release pin

    Repaired

    Mount the arm between post and gate; the pin frees the arm for hand operation.

    Signs it has failed: Play at the brackets, cracked welds, a pin that will not pull, or lag bolts working loose from a wood post.

Repair or replace your Ranger? The honest answer

Most Ranger faults are repairs: a battery, a charge source, a limit setting, a splice or a single actuator. The genuine replace-or-upgrade decision on this family is usually about the gate. A Ranger 500 working a gate beyond its 13-foot, 400-pound ornamental rating will keep tripping however well it is repaired, and the honest fix is a Ranger HD or a Patriot, not another part.

Repair it when

  • Gate stops short or overruns — a limit setting and power cycle on the board.
  • Battery that will not hold up — battery, charge source and accessory load, sized to the traffic.
  • One leaf of a dual Ranger dead — port, splice, enable switch or a single actuator.
  • Storm-damaged board — replacement board, with limits, speed and dip switches set from scratch.
  • Weak solar charge — panel siting, cable gauge, or a 20 W panel in place of the original.

Replace or upgrade when

  • A Ranger 500 on an ornamental gate over 13 feet or 400 pounds: step up to a Ranger HD (16 ft / 800 lb rating) or a Patriot. The battery, DC adapter and 10 W solar kit are the same part numbers across these models.
  • A pre-2016 Ranger whose board has failed: USAutomatic published a procedure for fitting the 500510 board to operators built before January 12, 2016; we confirm what suits your serial before ordering anything.
  • A busy dual-leaf entrance on solar — the manual allows 11 cycles a day in its lowest-sun zone — where AC charging, not a new operator, is the real upgrade.
Call Now — (214) 735-4314Request a Free Estimate for US Automatic Ranger repair

Our US Automatic work

Photographs from our own US Automatic jobs — a mix of models, not all of them the Ranger. None of it is stock.

  • A wide metal ranch gate closed across a gravel driveway, with the gate operator and its control enclosure mounted on the left-hand post

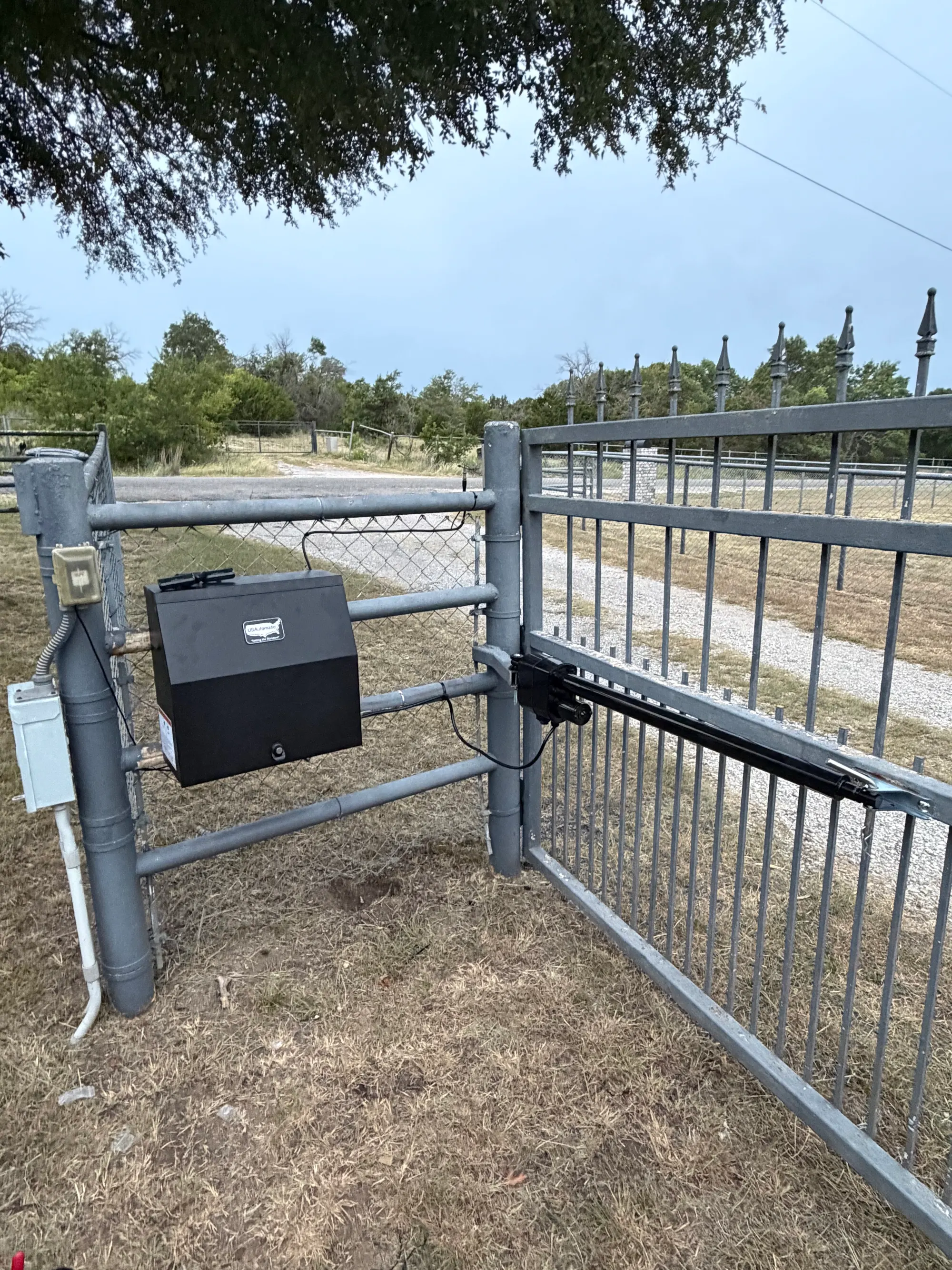

  • A gate operator in a black weatherproof enclosure mounted on the post of a metal ranch gate, with the drive arm connected to the gate frame

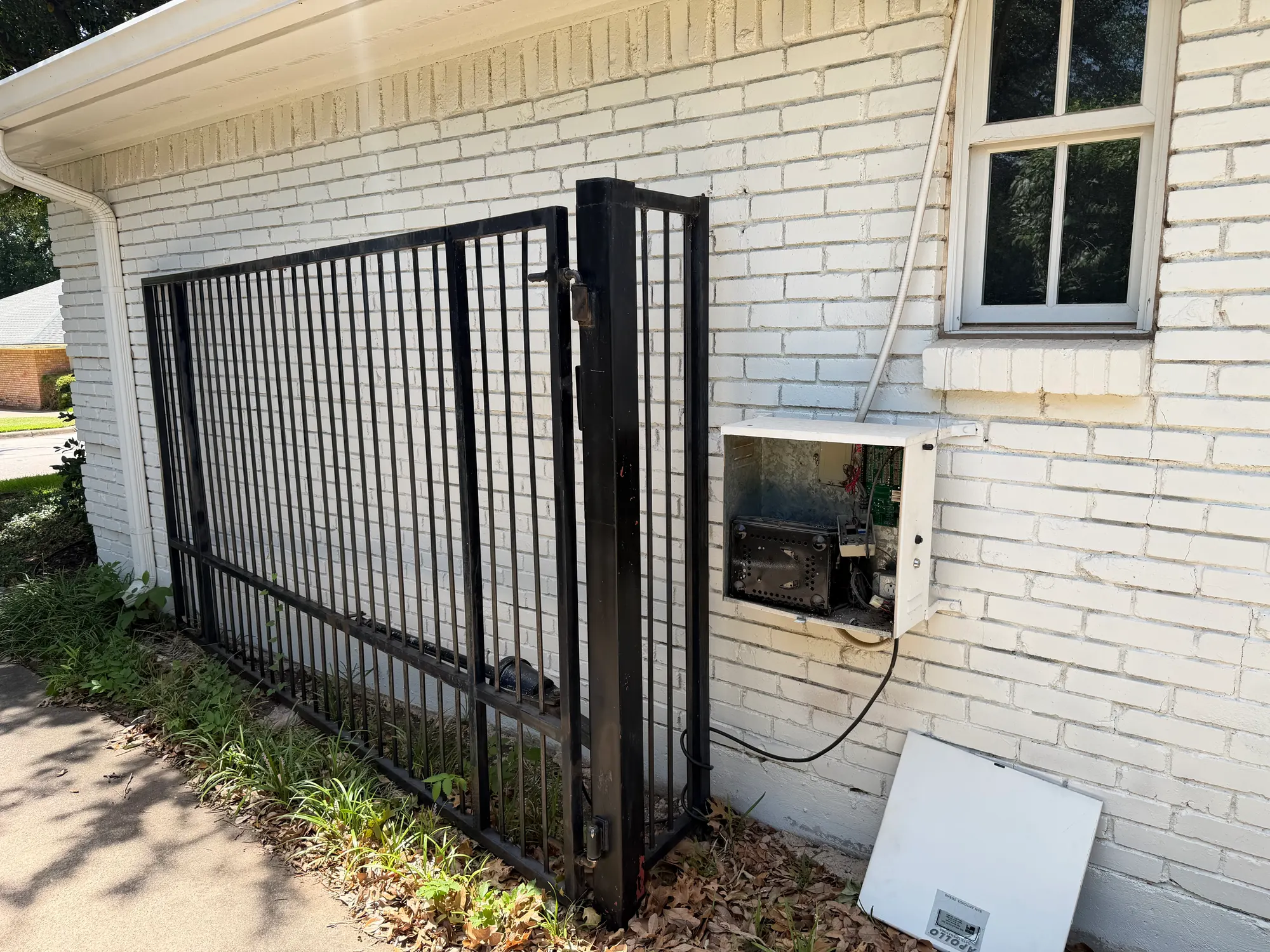

  • A black metal gate beside a brick wall with its control enclosure open, showing the operator wiring and components inside

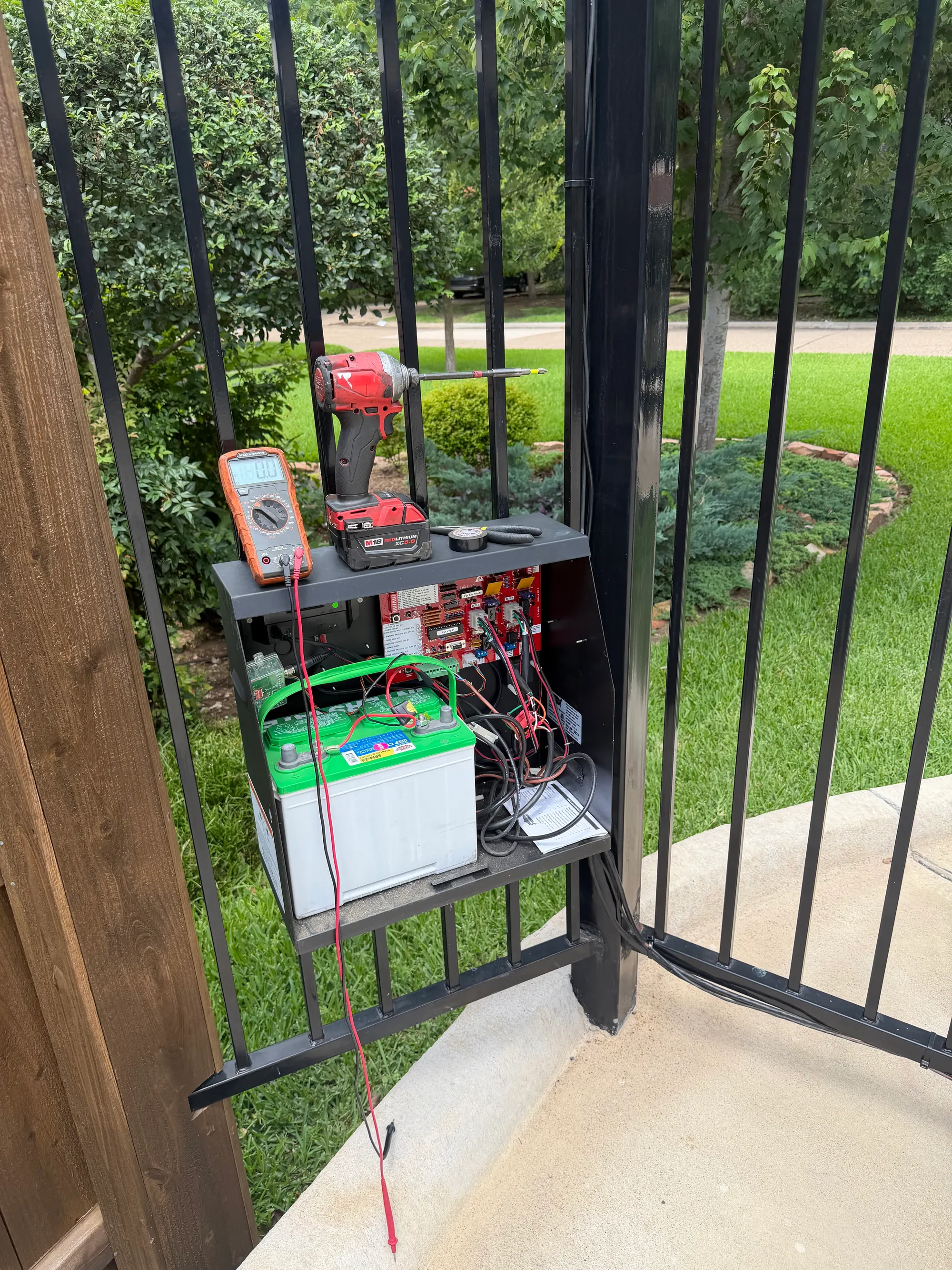

  • An opened gate control enclosure showing the battery, charge wiring and control board, with a multimeter resting on top during electrical testing

How we diagnose and repair a Ranger

  1. Hand-test the gate against its rating

    We pull the release pin and move each leaf by hand, and compare the gate’s length, weight and type with what your Ranger model is rated for.

  2. Identify the model and board

    Actuator stroke separates a Ranger 500 from a Ranger HD; the serial on the board identifies the revision and the manual its settings must come from.

  3. Test the battery and the whole charge path

    Load test the battery, read the controller, and follow the charge cable back to the adapter or panel, opening any splice boxes on the way.

  4. Check what the accessories are drawing

    Keypads, receivers, photo eyes and locks are checked against the Ranger’s 750 mA accessory output and the battery’s real daily budget.

  5. Set limits, speed and sensitivity, then verify safety

    Limits by dial and nudge with the required power cycle, soft start and stop, sensitivity, then reversal and monitored device tests.

  6. Quote before work

    You get the diagnosis and a quote first. Common parts are on the truck; anything less common is ordered and you are told upfront.

US Automatic warranty on the Ranger

USAutomatic’s current manuals state, from date of manufacture: operators free from defects in materials for 3 years; current-design Ranger 500 and Ranger HD control boards 3 years; previous-version control boards 1 year; accessories 1 year. Battery replacement, field labor and trip charges are not covered.

  • The Ranger board term is 3 years, against 5 years for current Patriot boards — worth knowing when choosing between them.
  • Ranger manuals state that modifying the transformer or solar panel cable voids the product warranty; extensions should use USAutomatic’s 630038 pigtails in a watertight box.
  • Warranty claims go to USAutomatic support with the model and the serial number printed on the control board.
  • Exclusions include battery acid damage, weather and acts of God, incorrect installation and lack of maintenance.

Our warranty on the repair

Every repair is backed by a clear written warranty. No hidden terms and no confusing fine print: what is covered is explained before we begin, and it is separate from whatever US Automatic covers on the operator itself.

What our warranty covers

The Ranger in Dallas–Fort Worth conditions

Long driveways and the charge cable

A Ranger suits long rural drives because the charge source does not have to be at the gate. The Ranger HD manual tables the DC adapter’s low-voltage lead out to 1,000 feet on 10-gauge wire, and a solar lead to 500 feet on 14-gauge — useful on acreage in Wise or Parker county where the nearest outlet is at a barn. The weak point is the splice: it belongs in a watertight box with direct-burial or conduit-run cable, and a corroded splice after a wet spring behaves exactly like a dying battery.

Heavy iron gates on a light operator

Decorative iron is common on Dallas–Fort Worth estate entrances, and the Ranger 500’s 400-pound ornamental rating is easy to exceed with a double gate. Add the sag that follows when expansive clay moves a post, and a Ranger 500 that was borderline on day one starts tripping its current sense. Checking the gate against the Ranger 500 and Ranger HD ratings is part of an honest Ranger diagnosis here.

Summer battery, winter panel

The Ranger battery sits in its box through triple-digit afternoons, and heat shortens sealed lead-acid life — older Ranger manuals remind installers never to seal the box completely because the battery needs airflow. Then winter’s low sun and short days cut what the 10-watt panel gathers just as the battery has lost capacity. With 11 solar cycles a day for a dual gate in the manual’s lowest-sun zone, a Ranger HD 2 or Ranger 500 2 has little slack in January.
